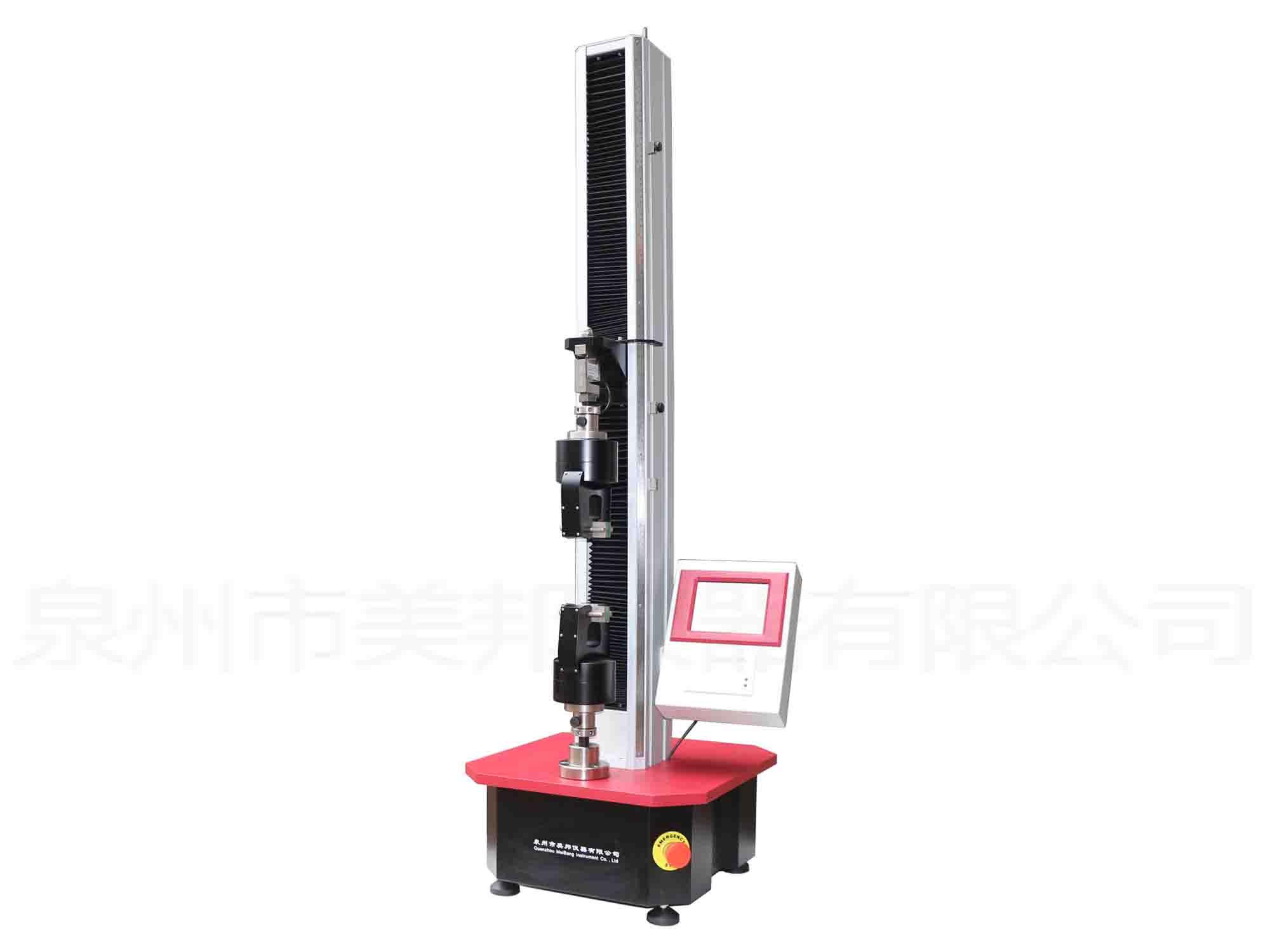

YG026DK universal strength tester

Video
Gallery
360°Show
×
×
×
Applicable scope
Test principles and standards
Instrument characteristics
Configuration list
For all kinds of textile tensile,tear,bursting,elongation,load,elastic,seam,slippage and stripping test of mechanical properties,and it is widely used in rubber,plastics,leather,metal,wire,paper,packaging,building materials,petrochemical,electrical,tensile,geotextile material compression,bending,bonding,peeling,tearing and bursting,creep test stress,elongation and deformation test.
GB/T3923.1/2, GB/T 3917.1/2/3/4/5, GB/T19976, ISO13934.1, ISO13935.1, ISO9073.3/4, ASTM D5035, ASTM D2261, and so on.
1. The column of aluminum alloy profile is adopted on the column of the instrument, and the surface of the instrument is treated with high temperature curing spray, and it is resistant to scraping and is not easy to fade.
2. Imported AC servo drive, ball screw, can do wide range speed setting, suitable for various materials mechanical performance testing.
3. The instrument host uses the touch screen control, the operation is intuitive and simple, and the printer is built in, convenient to use.
4. According to customer needs can provide a variety of standard test functions, and can also be customized according to customer requirements.
5. Multi-function pneumatic clamp device, only need to replace the clip to complete different tests, easy to replace, stretching and breaking test does not need to replace the sensor.
6. The instrument adopts an open structure. Users can edit the required testing procedures, data analysis formulas and test reports according to the types and characteristics of the materials tested and the requirements of test methods. And the instrument can be upgraded and maintained easily through online support.
7. The instrument holds the distance of the digital setting, and automatically positioning.
8. The instrument adopts various protective measures: the upper and lower limit protection devices for the beam, the anti collision protection device for the clamp, the overload protection for the sensor, and the software installation, displacement and load limit protection, overcurrent, overvoltage protection and so on. The main components are monitored and displayed the fault information in real time, and the use is more safe and reliable.
9. The instrument can be used on line with professional strength tester. Its software has control instruments, test curve drawing, test data analysis, preservation and management, test report formation, printing and other functions. And it supports wireless WiFi communication.
